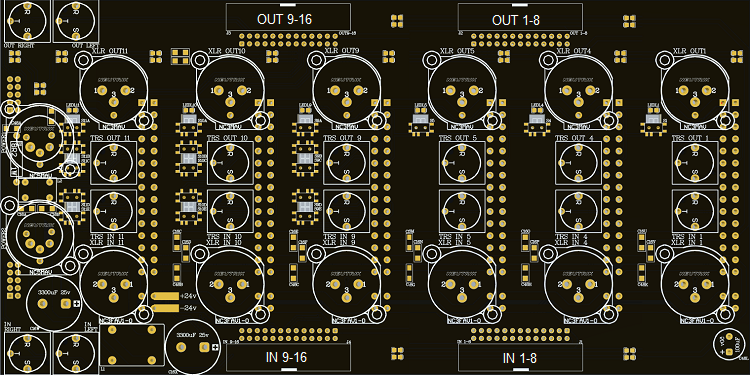

Eleven Back Build Map: This build map shows where the different component types are located on the PCB.

  • Please read notes and errata on Build Thread first.
  • Build in the order listed in the BUILD ORDER LIST!
  • Click the checkbox in front of the first part to see where these are located on the PCB and to display an image of the component.
  • Once you have completed that part type click on the next part to complete. The previous parts become red and the new part is shown as yellow.
  • Continue down the list until all the parts are done.
  • You can also hover over a component to see all the locations for that type of part shown in green.
