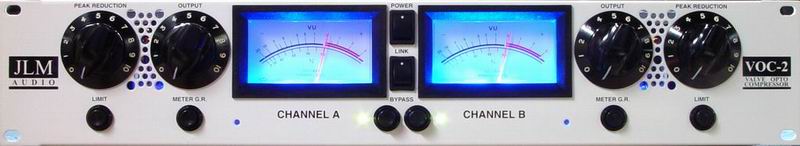

VOC-2 Dual Mono Valve Opto Compressor $4550AUD + GST

Features for each Channel

• LA2A Style Opto Compressor.
• Compressor 3:1 Mode.
• Limit Mode starts at 3:1 but by 10dB of Compression is at 20:1.
• Large Lite VU Meters.
• Meter Output / Gain Reduction Switch.
• Gain Control has 20dB of Makeup Level.
• Peak Reduction Control sets Threshold.
• Link Switch for Stereo Compression or Limiting.
• Bypass switch removes compressor from signal path and links input to output with a relay directly at the XLRs.
• 20sec warm up circuit holds compressor in bypass until unit is warmed up.
• Front panel meter zero trim pots.
• Fully Regulated 150w 24v & 350v Power Supply that runs from 100v to 240vac.
• Gold Neutrik XLR in & outputs as well as TRS jack in & outs on rear.
• Side Chain Insert TRS jack on rear for De-Essing EQ or Low roll off filters for stereo Mastering.
• Removable IEC Power Lead.
• 2 rack Unit high in Pearl White.
