Power Plant 2 Rail Power Supply PCB

Power Plant 2 Rail Power Supply PCB
  • Click to enlarge

$22.00AUD inc GST for Australian Customers
(Approx $13.45USD outside Australia)


Product Information
Stock Level29

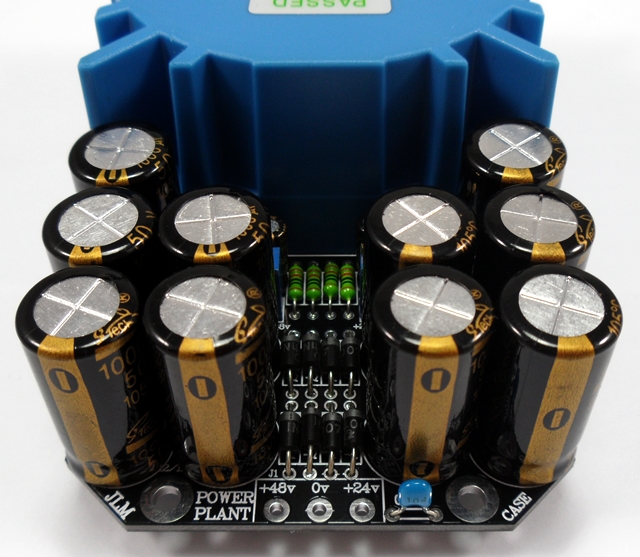

JLM Audio Power Plant PCB

115vac/230vac to +24vdc @ 600mA and +48vdc @ 100mA power supply for running 4 x Neve, Telefunken and RCA BA modules.

2 x 12vac transformer for  +24vdc to +28vdc  for Neve, Telefunken etc

2 x 15vac transformer for  +28vdc to +36vdc for RCA BA** etc.

Super compact size for its power. 4.75" (120.65mm) x 2.5" (63.5mm) x 1.56” (39.6mm) high .

Switchable 115vac/230vac. VS sync allows syncing multiple Power plants with one 115vac/230vac voltage selection switch.

Super smoothing capacitor bank and trim pot set able voltage rails for precision.

Easy heatsink or case mount with only one screw to tension regs down. Fits on bottom of 1 unit high case (if you have 39.6mm internal height) or side of 2 unit high case.

Regulator metal tabs face away from the PCB so they will press against metal case inside the insulating silicon tubes.

Power Plant PCB 4.75" (120.65mm) x 2.5" (63.5mm)



Power Plant Schematic here

Power Plant Parts List here
