Prophet 5 Rev 2.0-3.0 6508 RAM chip upgrade FRAM replacement module.

Removes the 8 old 6508 1 bit x 1k rams and backup battery and updates to a single chip 8 x 1k FRAM with 150+ years memory with no backup battery needed.

Prophet 5 Rev 3.0 is Plug and Play.

1. Back up any presets.
2. Remove 8 old 6508 ram ics.
3. Fit FRAM replacement module.
4. Try storing a preset then powering off and on and recall the preset.
5. If all ok remove the backup battery and reload presets.

Prophet 5 Rev 2.0.

1. Back up any presets.
2. Remove 8 old 6508 ram ics.

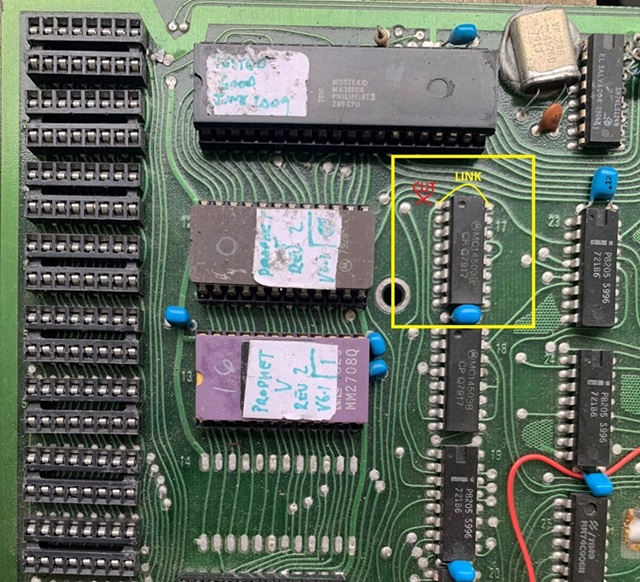

3. If the 2 x 14503 ics are socketed remove and fit the adaptors supplied and replace the 14503 ics. If 14503 ics are soldered in a simple track has to be cut and one link fitted.
4. Fit FRAM replacement module.
5. Try storing a preset then powering off and on and recall the preset.
6. If all ok remove the backup battery and reload presets.
