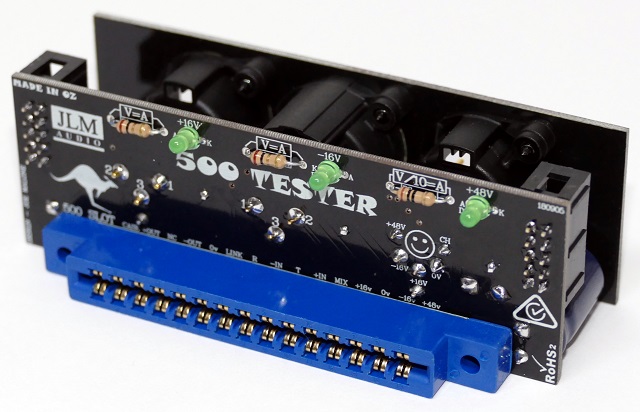

500 TESTER kit for building and testing 500 modules separate from a 500 rack with our or API standard 5 pin XLR power supply.

If you have 5 pin XLR power supply with Pin 1 CHASSIS, Pin 2 GND, Pin 3 +16v, Pin 4 -16v, Pin 5 +48v it will work with our 500 testers fine.

LEDs for +16v, -16v and 48v power on.

Resistors on pcb allow for current checking of each power rail.

Kit parts

1 x main PCB

1 x Front panel PCB

1 x NC3-FAV

1 x NC3-MAV

1 x NC5-MAV

1 x 15 way 500 edge connector

3 x Green led

2 x 1ohm

1 x 10ohm

2 x 1k5

1 x 4k7

2 x 1000uF 25v

1 x 100uF 50v

2 x 10 pin header
